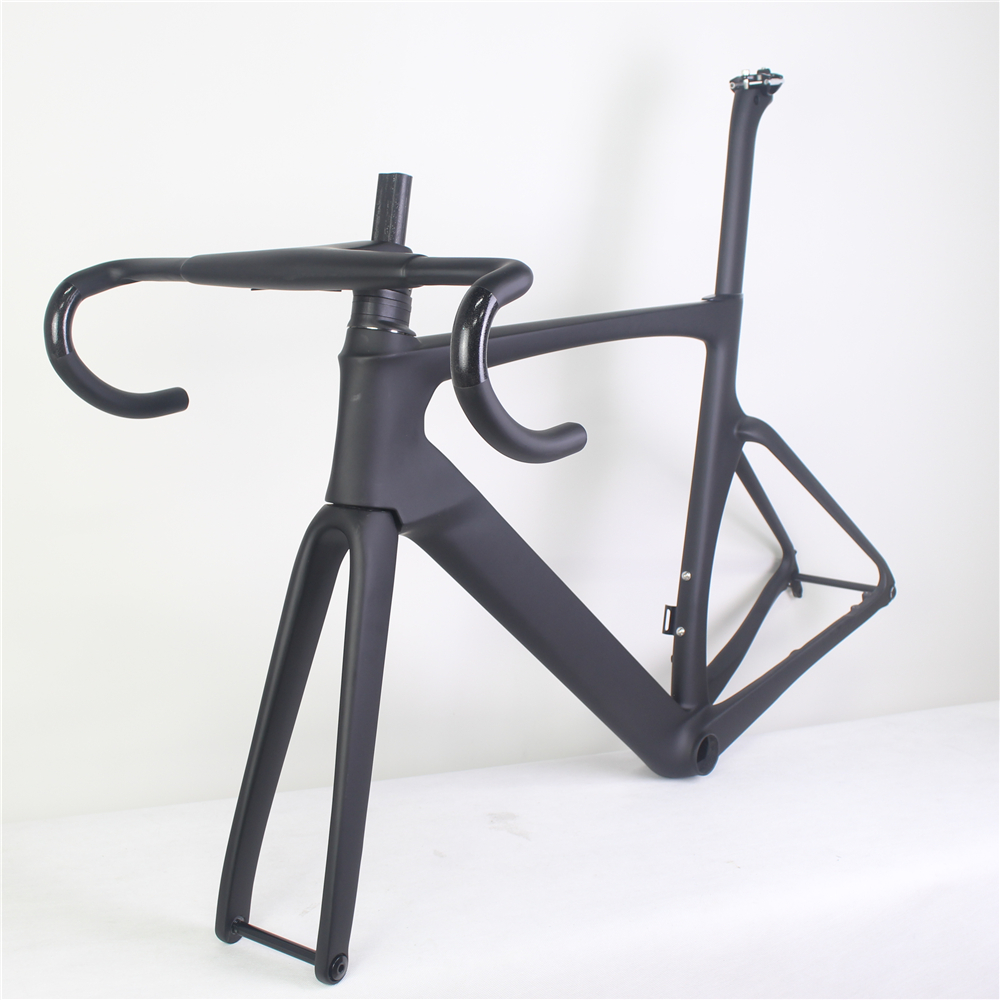

Carbon Disc Brake Frame

  • FM237 Disc Brake Full Hidden Cable Routing Frame
  • FM237 Disc Brake Full Hidden Cable Routing Frame
  • FM237 Disc Brake Full Hidden Cable Routing Frame
  • FM237 Disc Brake Full Hidden Cable Routing Frame
  • FM237 Disc Brake Full Hidden Cable Routing Frame
  • FM237 Disc Brake Full Hidden Cable Routing Frame
FM237 Disc Brake Full Hidden Cable Routing FrameFM237 Disc Brake Full Hidden Cable Routing FrameFM237 Disc Brake Full Hidden Cable Routing FrameFM237 Disc Brake Full Hidden Cable Routing FrameFM237 Disc Brake Full Hidden Cable Routing FrameFM237 Disc Brake Full Hidden Cable Routing Frame

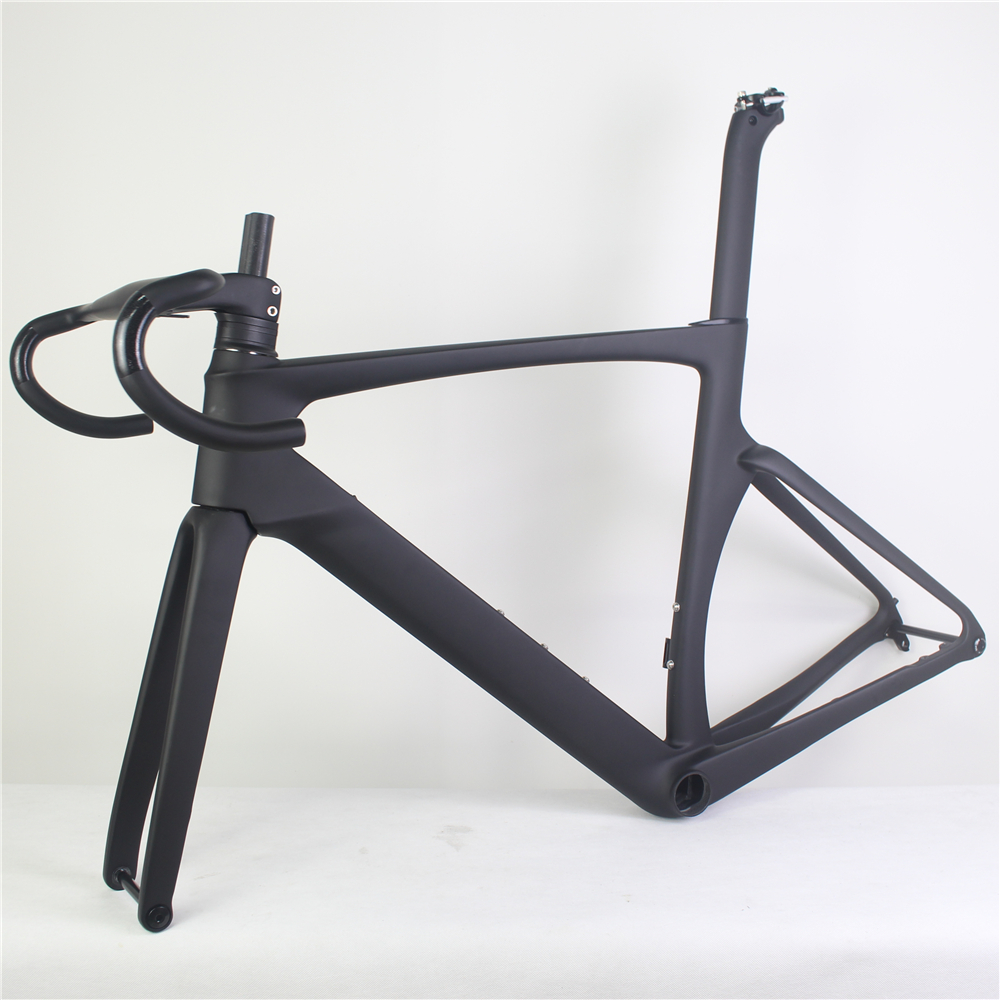

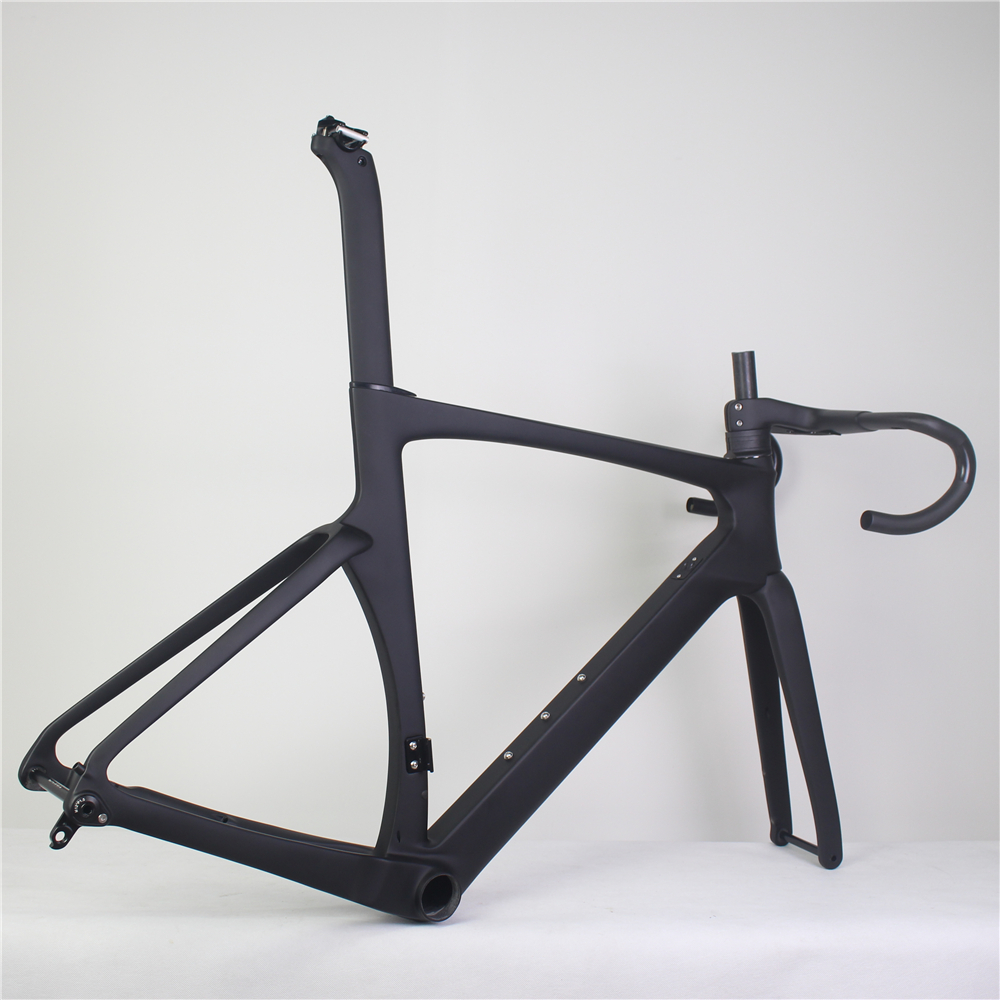

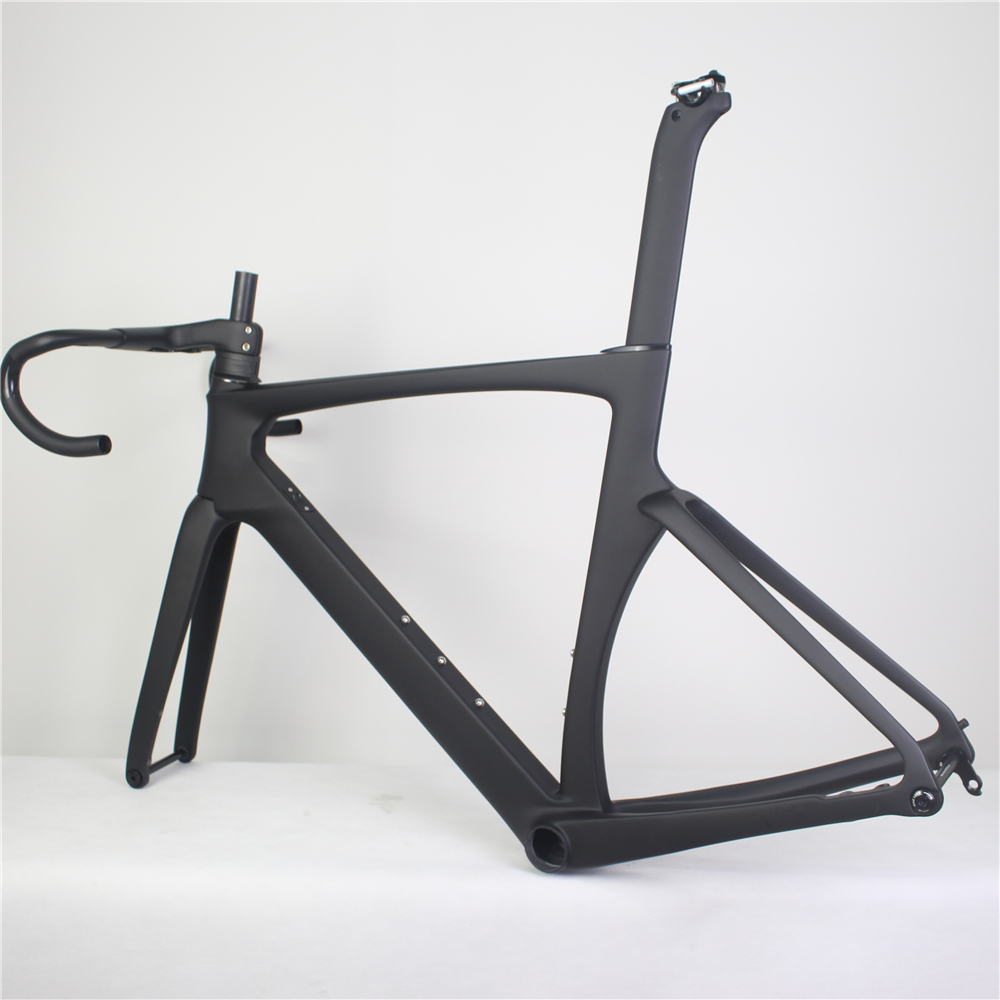

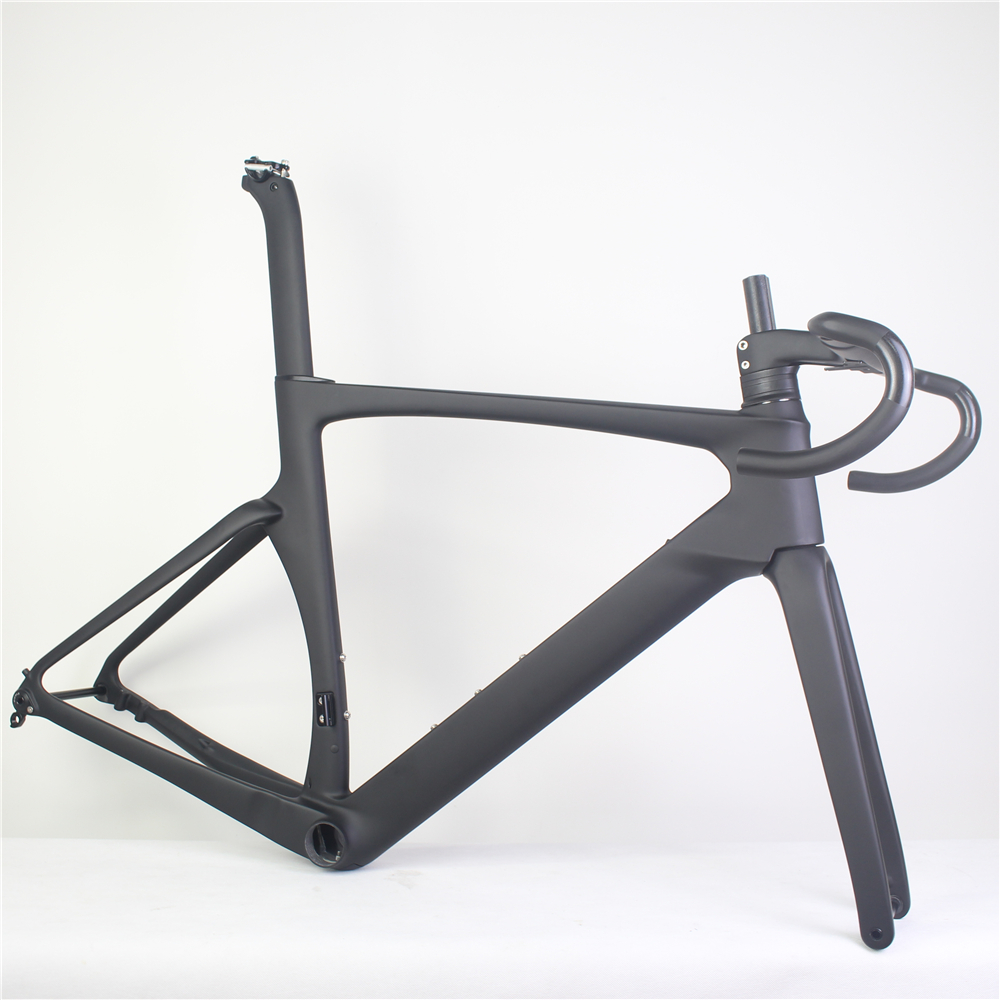

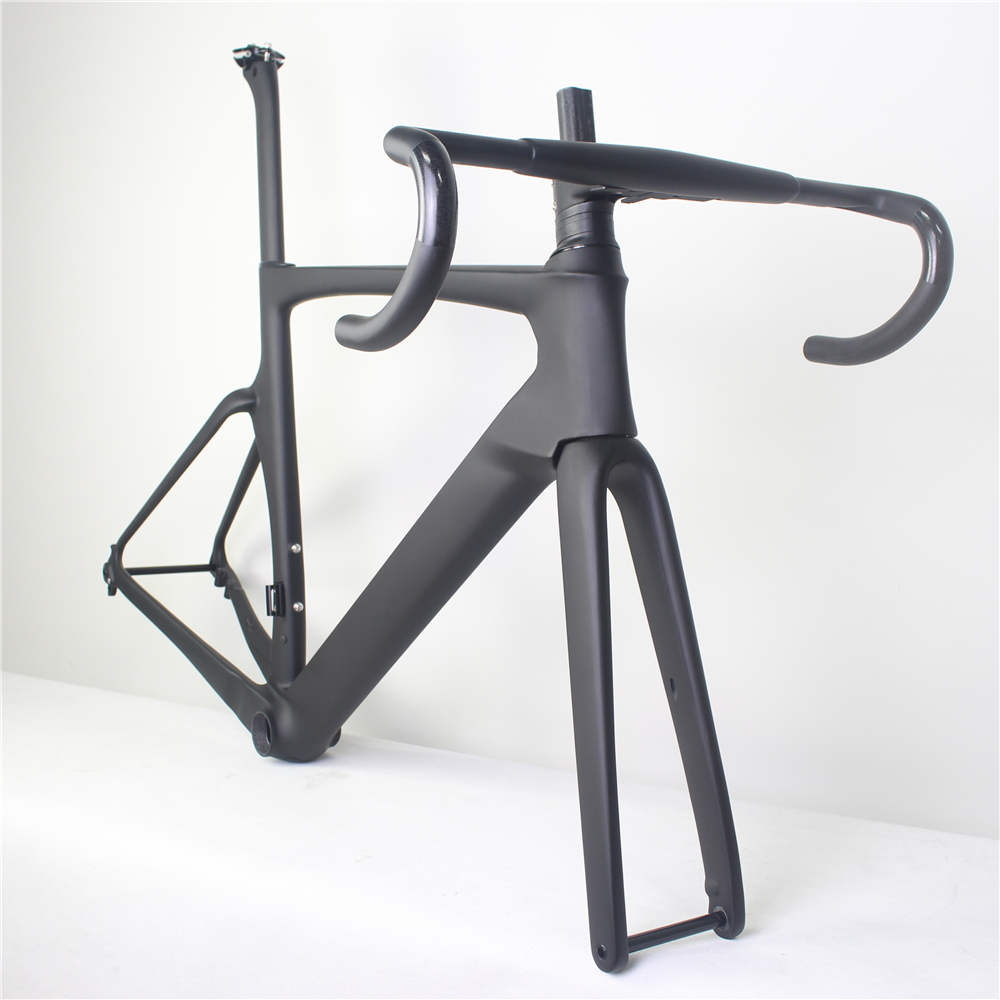

FM237 Disc Brake Full Hidden Cable Routing Frame

  • Bottom Bracket: BB386
  • Size: 47 49 52 54CM
  • Weight: 1231+/-50g (Size 52cm)
  • TA: 100*12-142*12mm
  • Product description: Headset Size:Top 1-1/8 (41.8mm) Down 1-3/8(49mm) Bottom Bracket:BB386 Press Fit (86*46mm) Handlebar Size :380/400/420/440 (Bar) 90/100/
  • INQUIRY

Pricing please contact email: info@winowsports.com

Model: WL-FM237

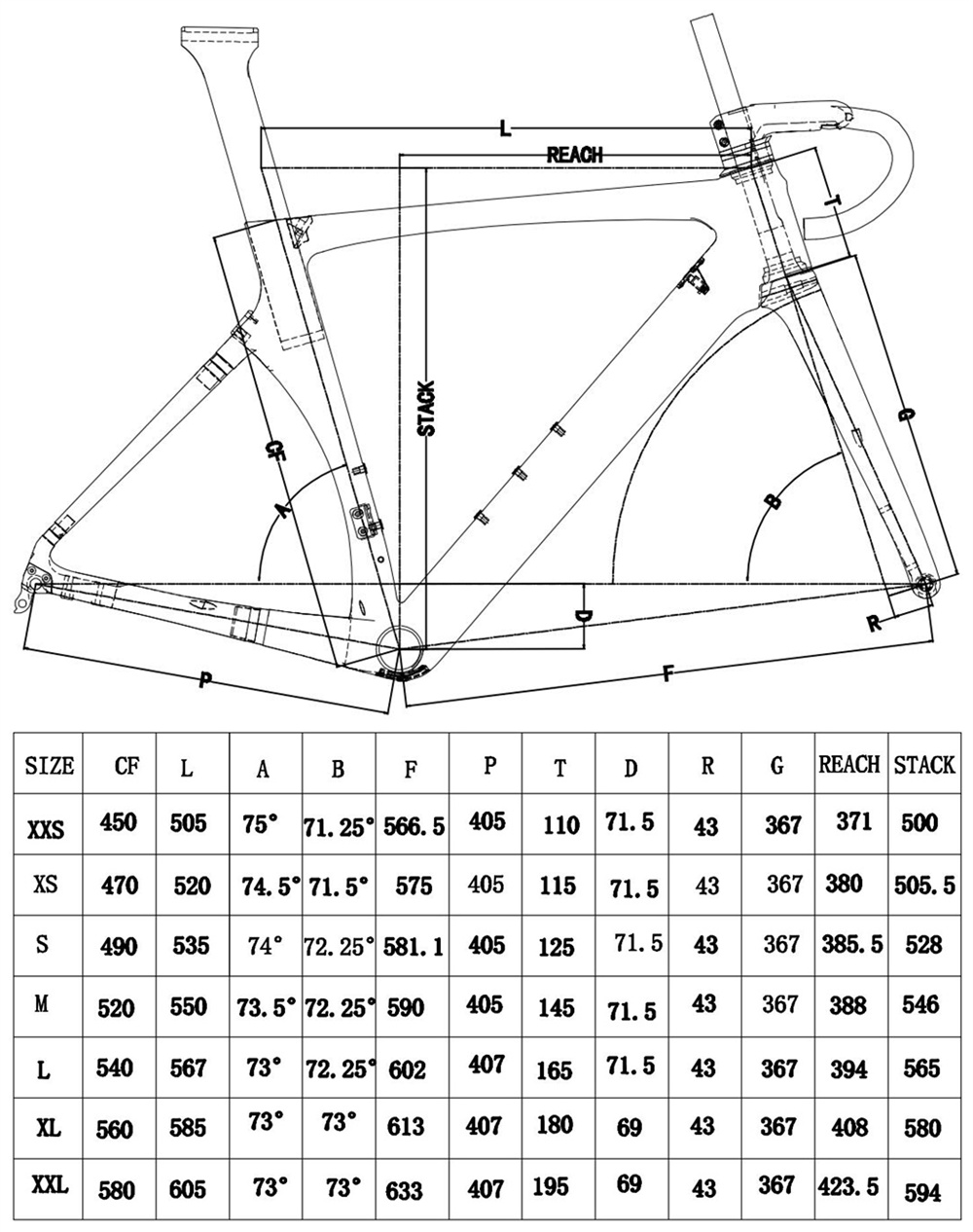

  • Frame Size :47/49/52/54CM

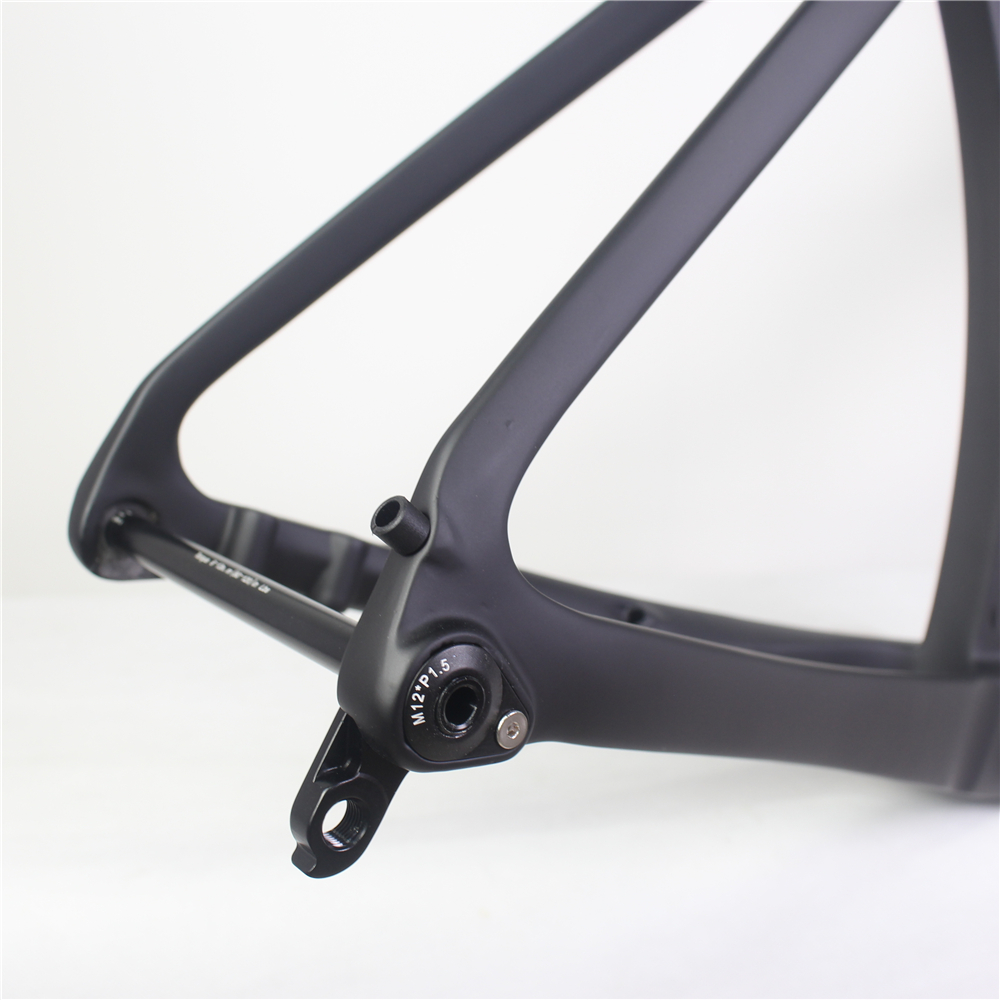

  • Thru Axle: Front 100*12mm, Rear 142*12mm
  • Material: T800 full Carbon
  • Type:700C Disc Road Frame
  • Weave:UD Finish:Matt/Glossy (Custom Color Accepted)

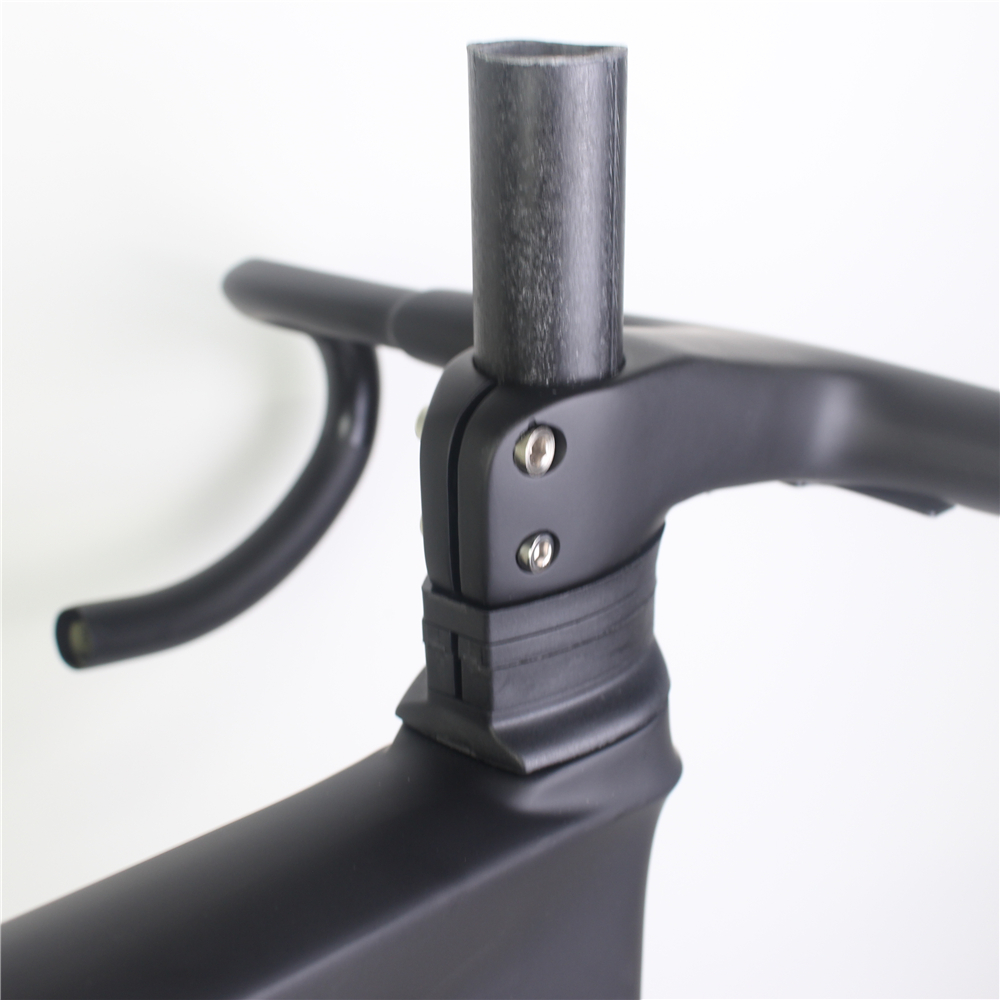

  • Headset Size:Top 1-1/8 (41.8mm) Down 1-3/8(49mm)

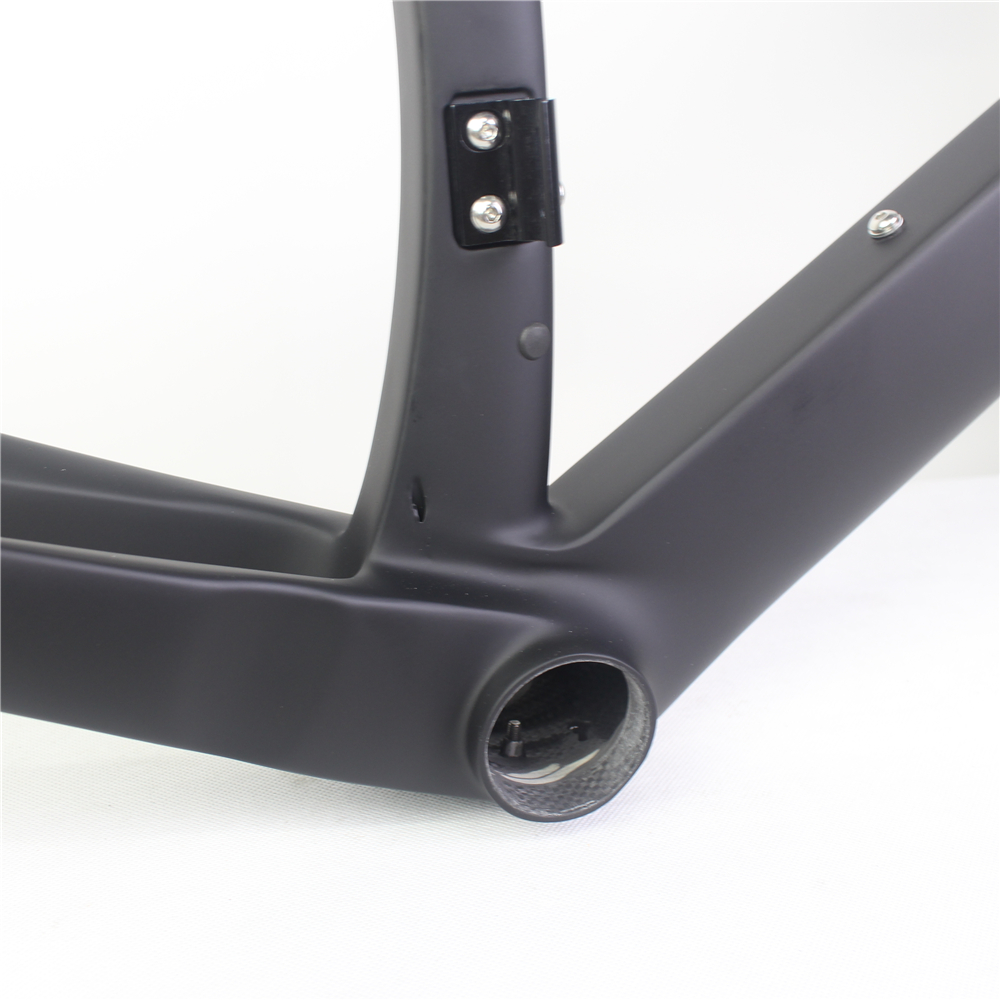

  • Bottom Bracket:BB386 Press Fit (86*46mm)

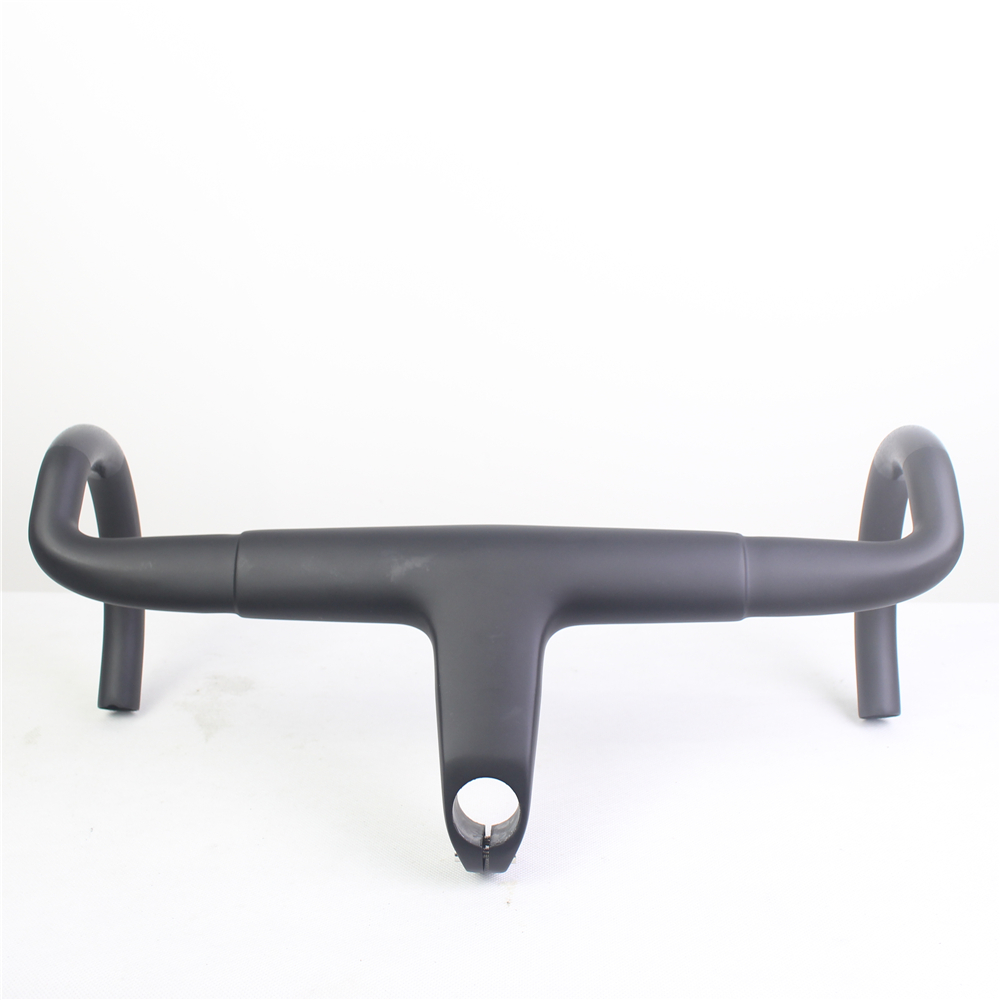

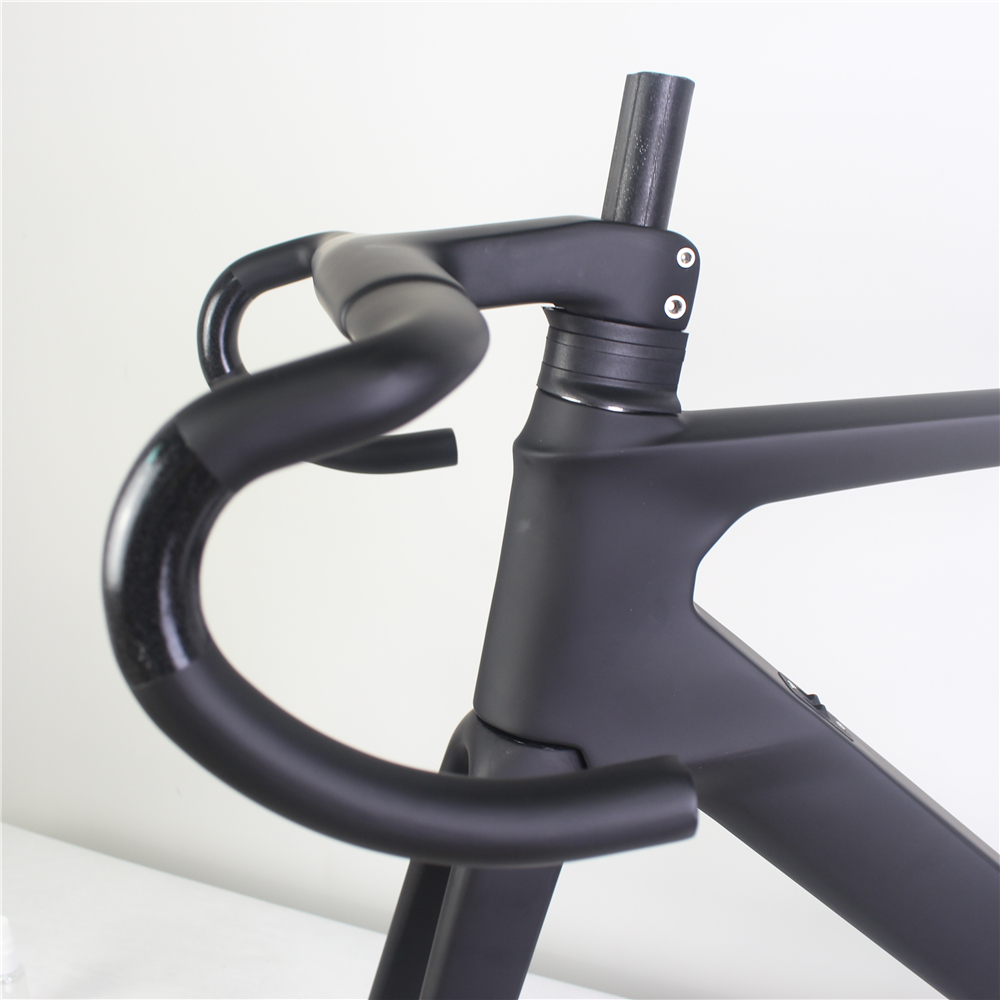

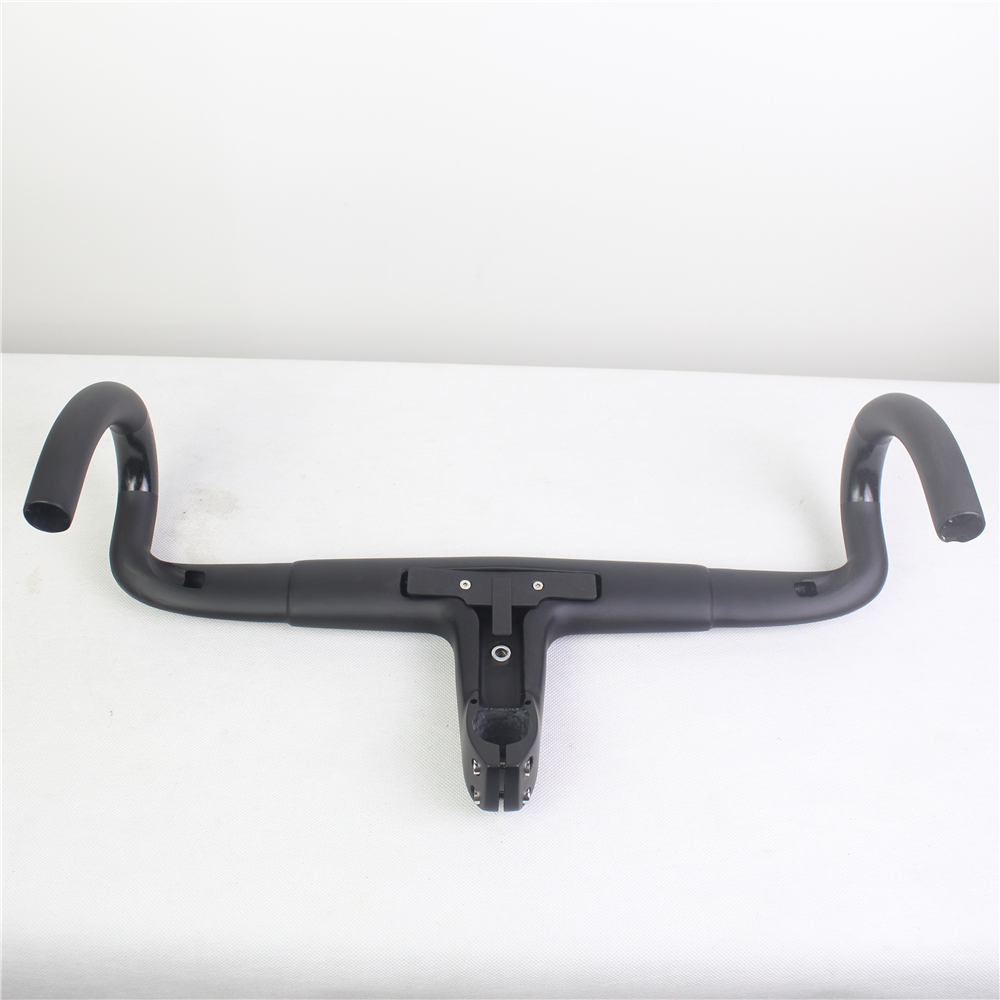

  • Handlebar Size :380/400/420/440
  • Stem: 90/100/110/120mm
  • We will send 420*100MM as Standard
  • Maximum Load:120KG
  • Cable : Full Hidden Cable Routing Internal
  • Brake: Flat Mount Disc Brake 140MM
  • Max Tire Size: 700*28C Frame
  • Weight: 1231+/-50g (Size 52cm)

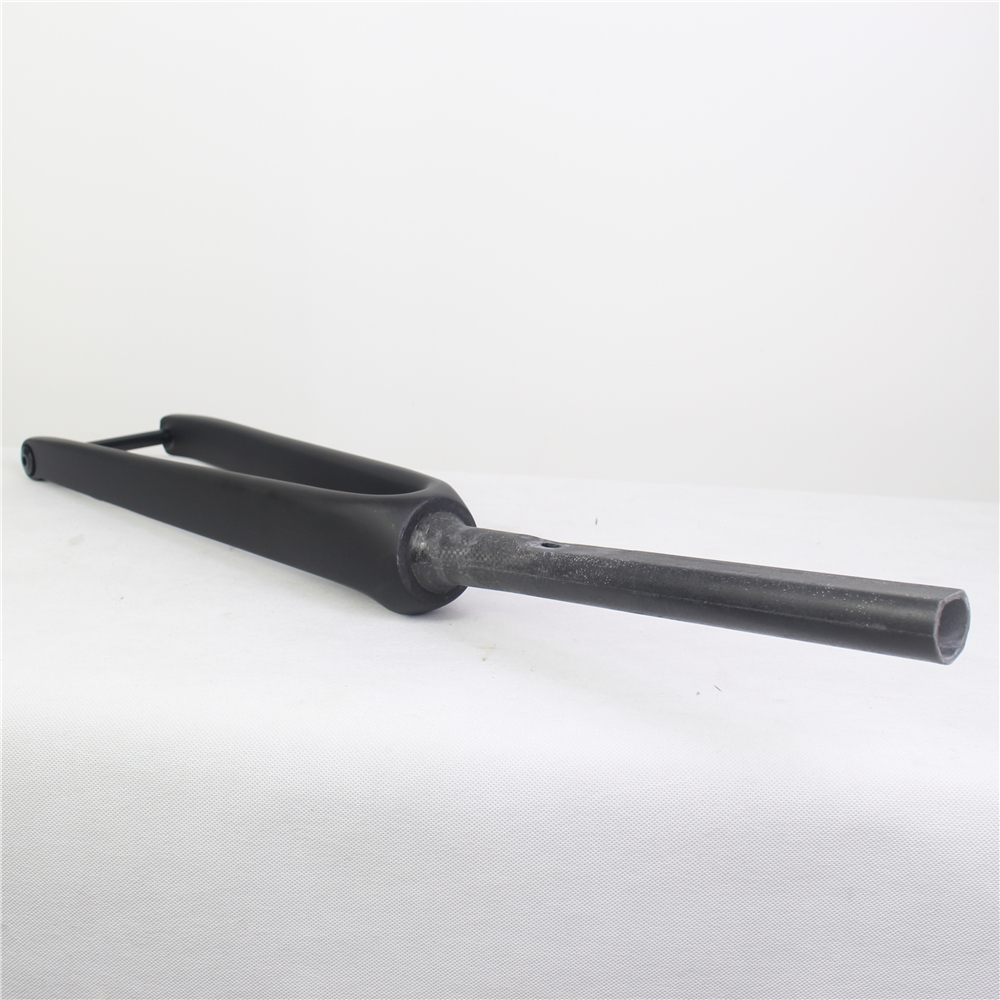

  • Fork Weight: 426+/-10g

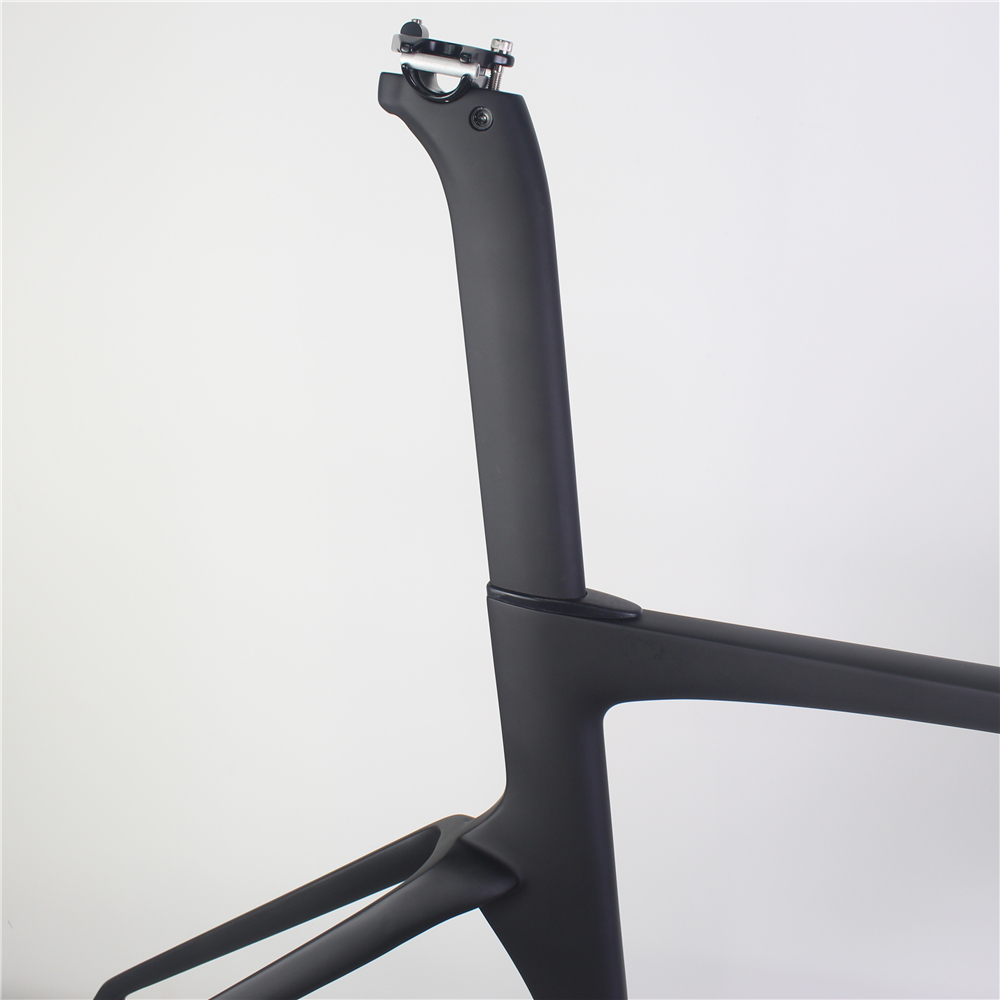

  • Seatpost Weight: 239+/-10g
  • Suitable Derailleur: Di2 And Mechanical Both
  • Test Standard: SGS Warranty: 2 years
