Disc Brake Frame

Road WR018

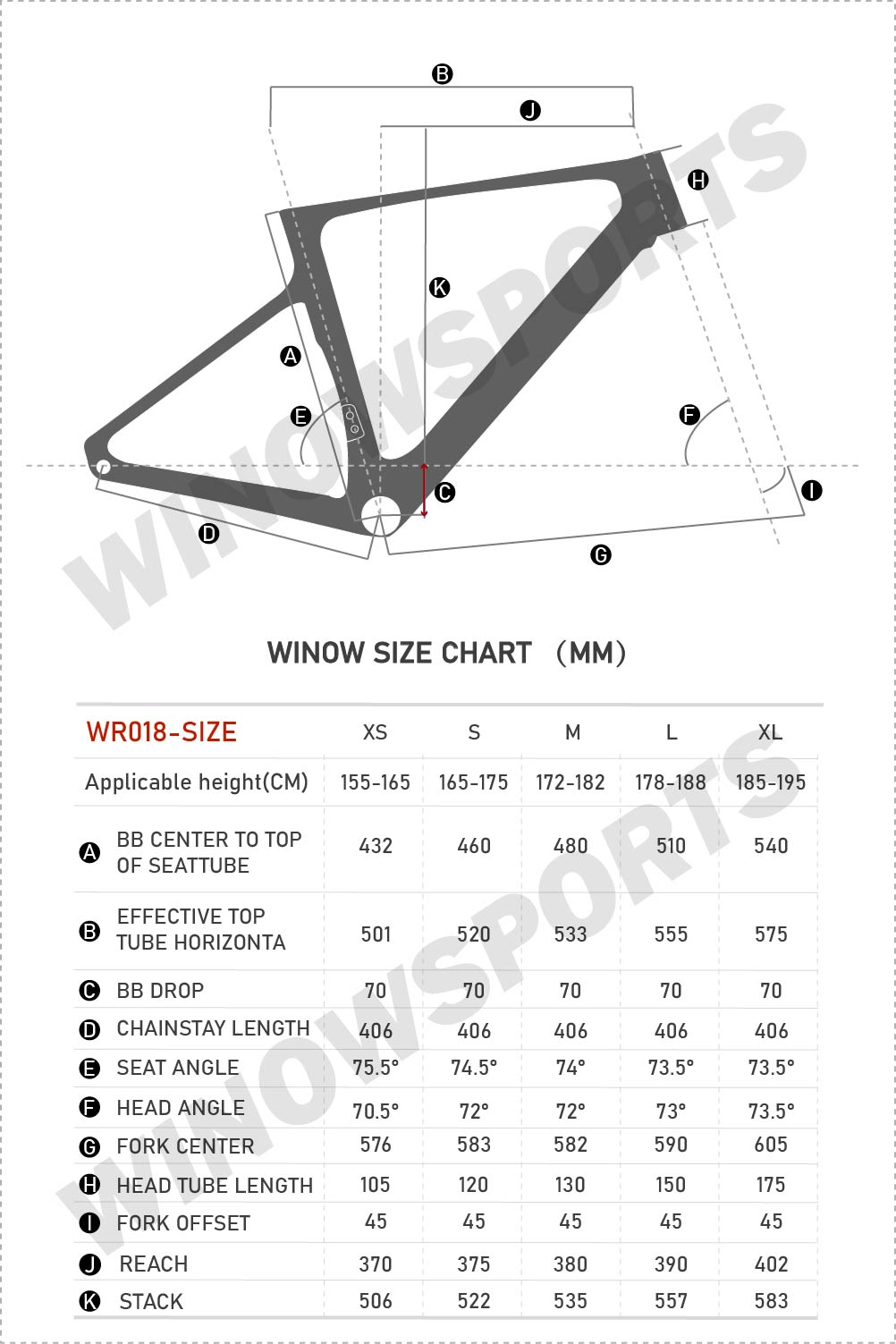

Size: XS S M L XL
Bottom Bracket: T47
Hanger: UDH
Axle: 100*12-142*12mm
Product description: 1. UDH Derailleur Hanger 2. T47 Thread Bottom Bracket 3. Aero wind break design
INQUIRY

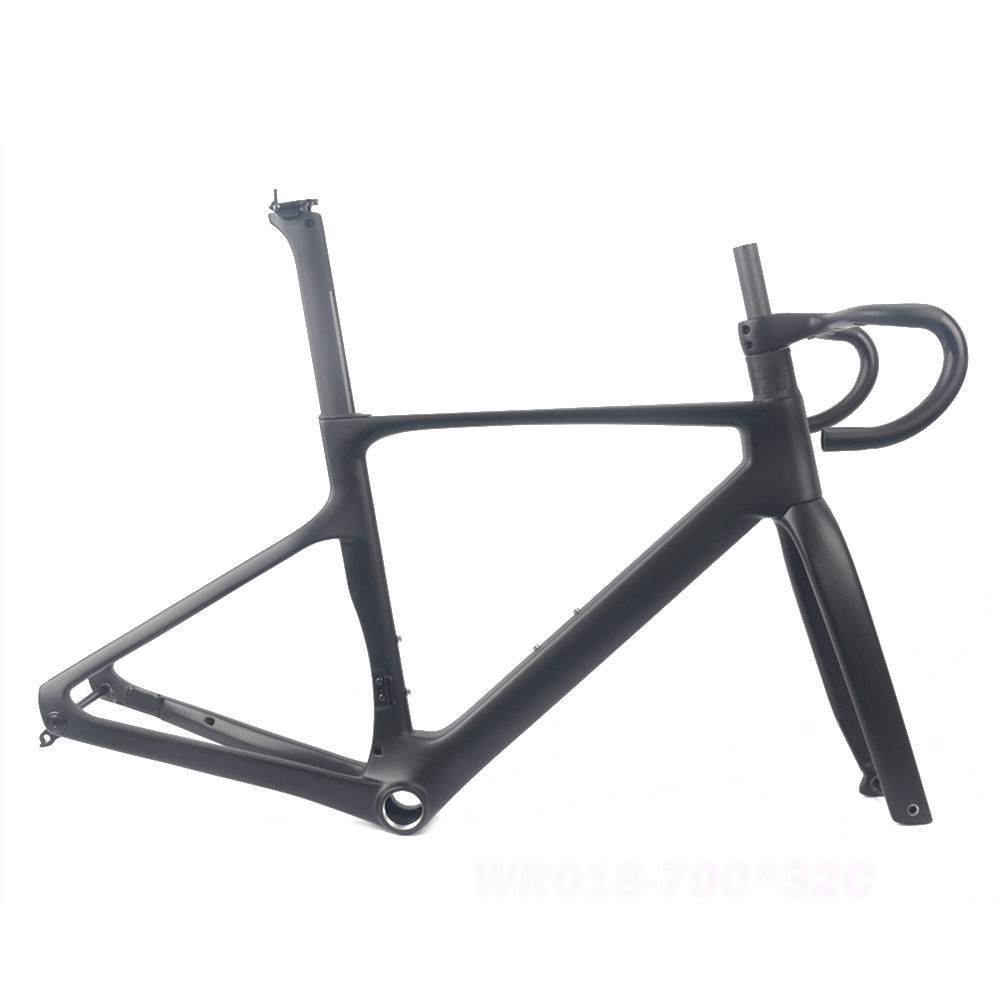

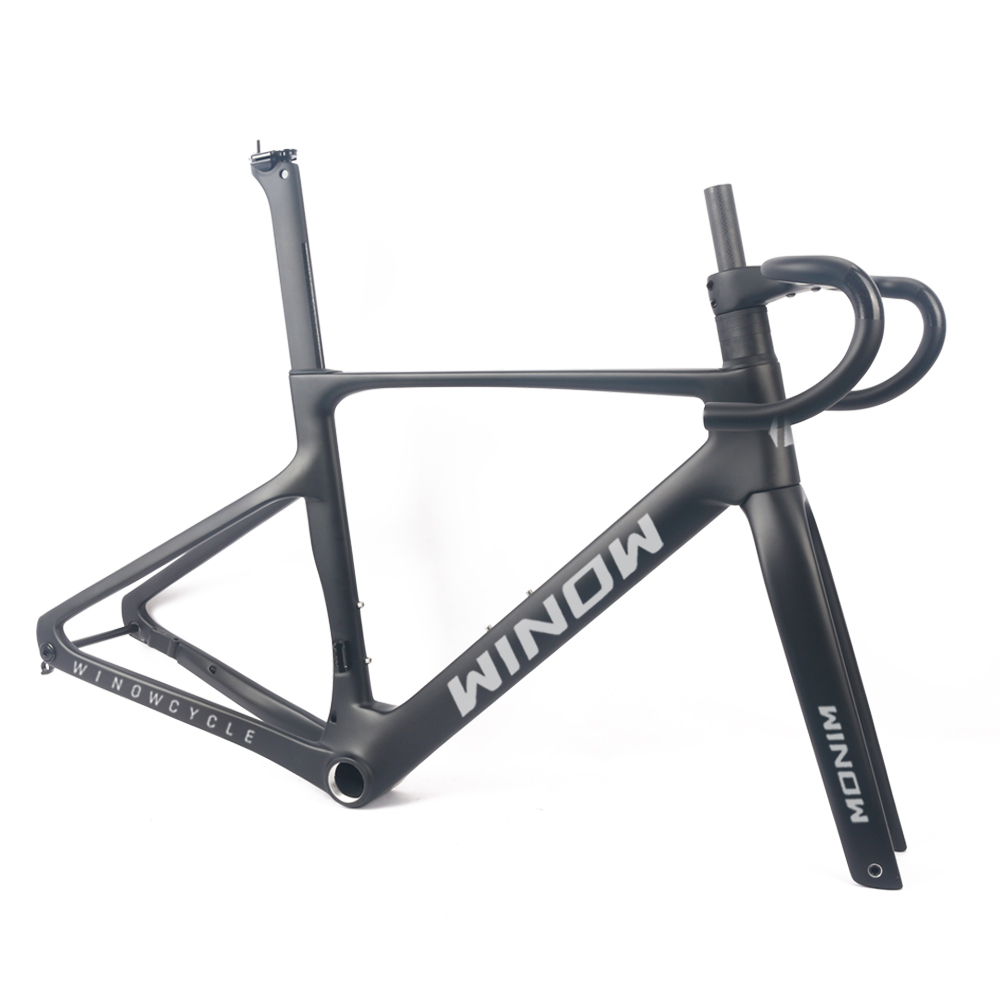

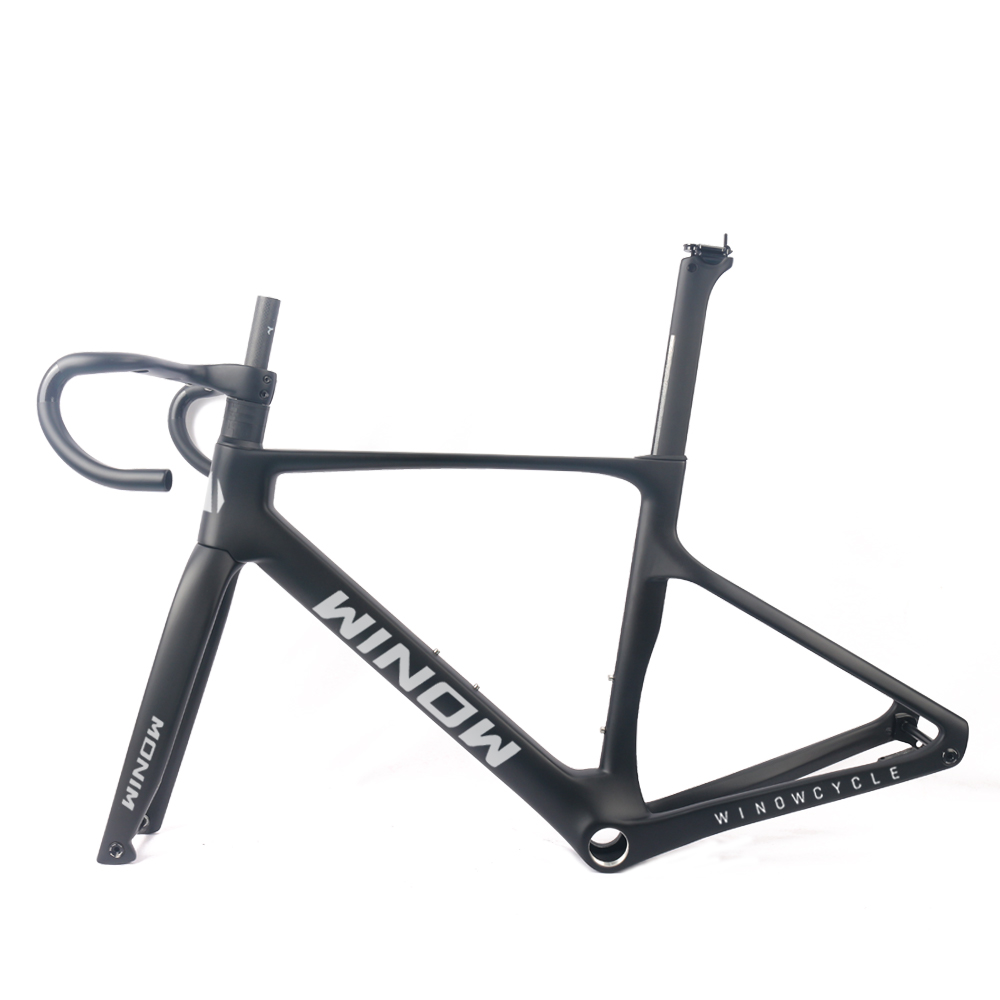

Type: WR018 (Super light T1000 disc road frame )
The Frameset: Frame+Fork+Seatpost+Clamp+Dust Cover+ Integrated Handlebar With Stem+ Thru Axle+ Headset
Size: XS/S/M/L/XL
Routing: Full Hidden Internal Cables
Headset Size: 1-1/2" to 1-1/2"
Bottom Bracket: T47

Thru Axles: Front 100*12 Rear 142*12mm

Frame Weight : 1052/+-40g(S)
Fork Weight : 410/+-40g
Seatpost Weight : 181/+-20g
Seatpost length: 350mm
Handlebar weight: 363/+20g
Max Tires: 700*32C
Disc Rotor: Front and Rear 140mm (160mm need add adapter)

Drop out: P1.0 UDH dropout
