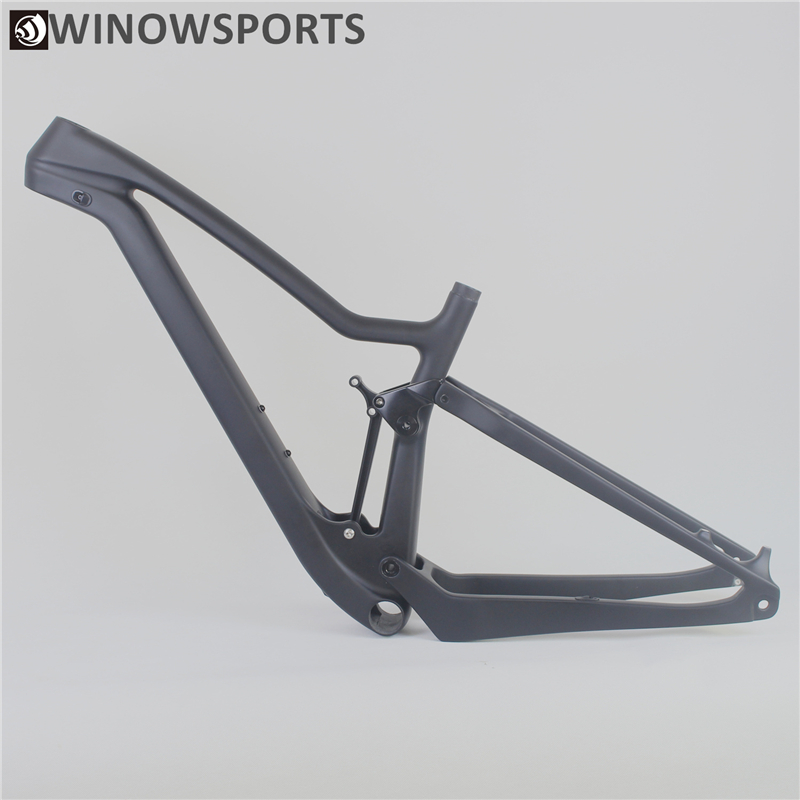

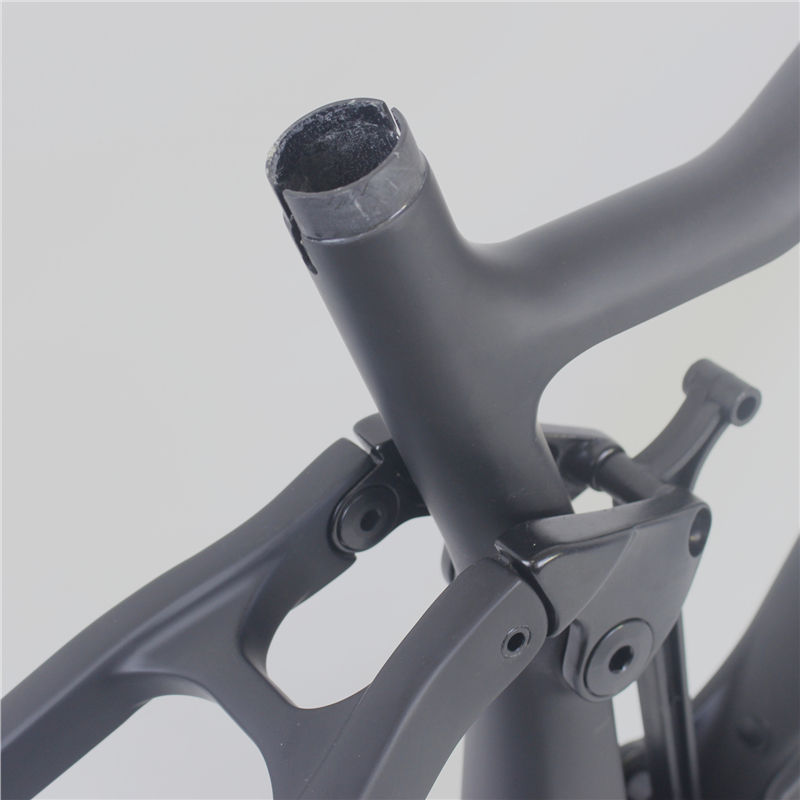

Carbon MTB Frame

WS-FS829 XC

  • Size: 15.5 17.5 19 21
  • Bottom Bracket: BB92
  • Rear Space: 142*12mm
  • Boost: 148*12mm

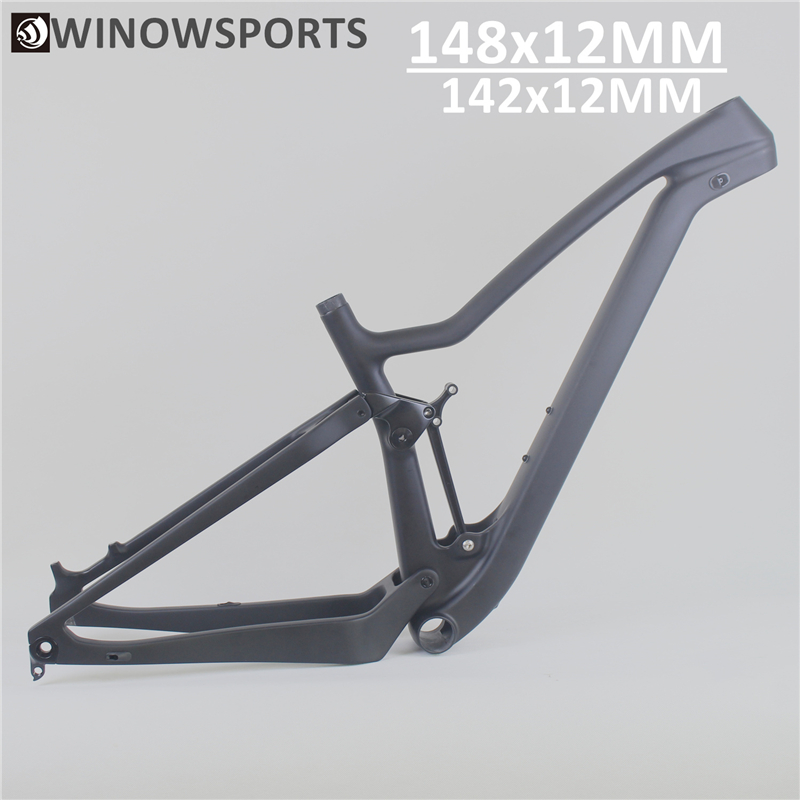

  • Product description: Two size rear spacing for choice: 142*12mm and 148*12mm
  • INQUIRY

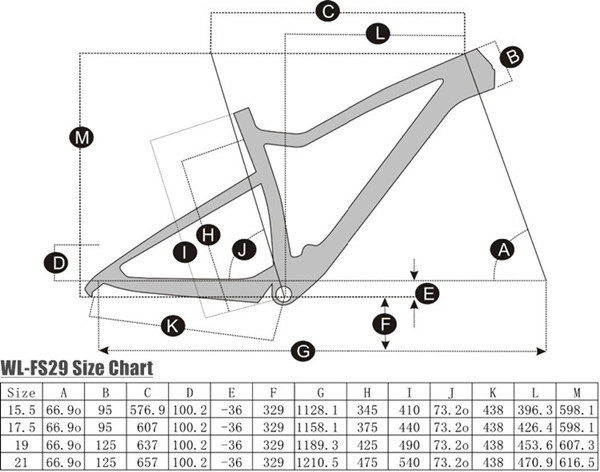

Frame Model: WL-FS829 (29er Boost / 27.5er Plus)

  • Material:Toray T800 Carbon Fiber
  • Size: 15.5"  17.5"  19"  21"
  • Frame Weight: 1980g/+-45g (17.5")
  • Weave: UD

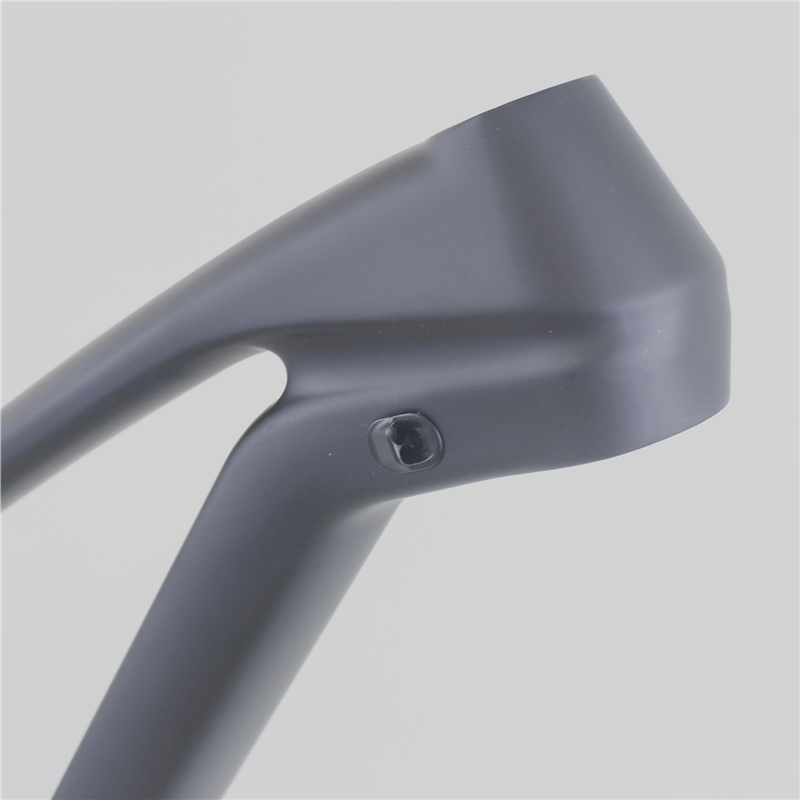

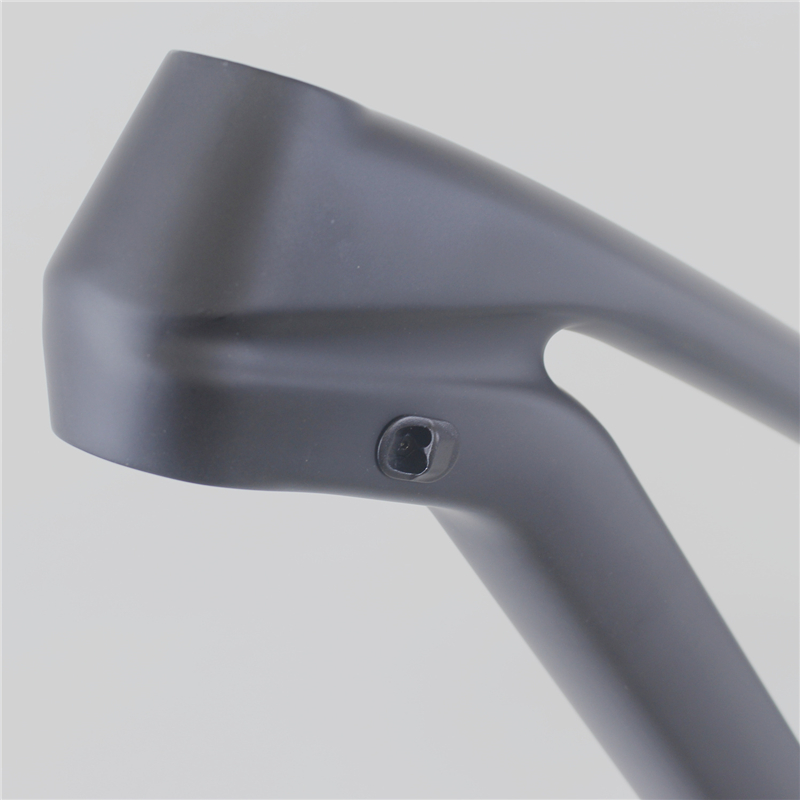

  • Headtube: 1-1/8" to 1-1/2"

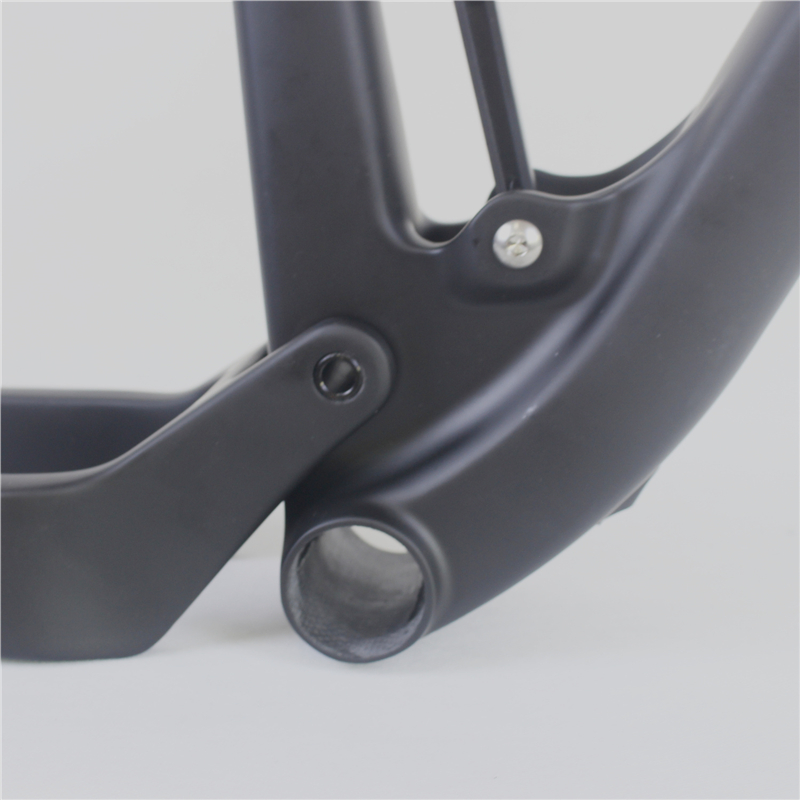

  • Bottom Bracket: BB92

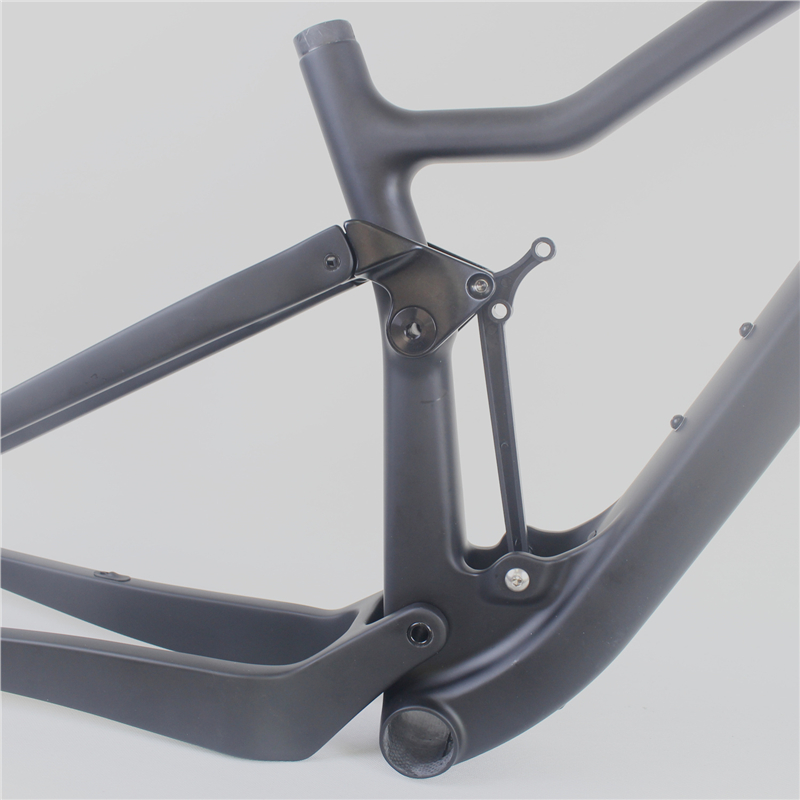

  • Rear Shock: 165*38mm
  • Rear wheels travel: 100.2mm
  • Advise Fork Travel: 100mm
  • Brake Type: Disc-brakes
  • Disc Rotor size: 180mm

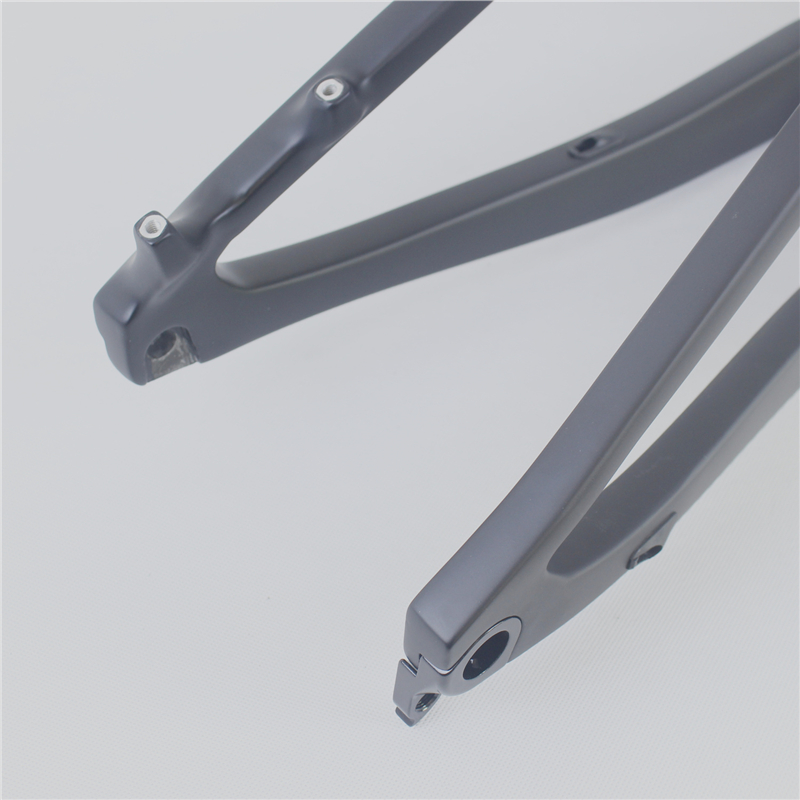

  • Rear space : 12*148mm Boost or 12*142mm
  • Seat tube: 31.6mm

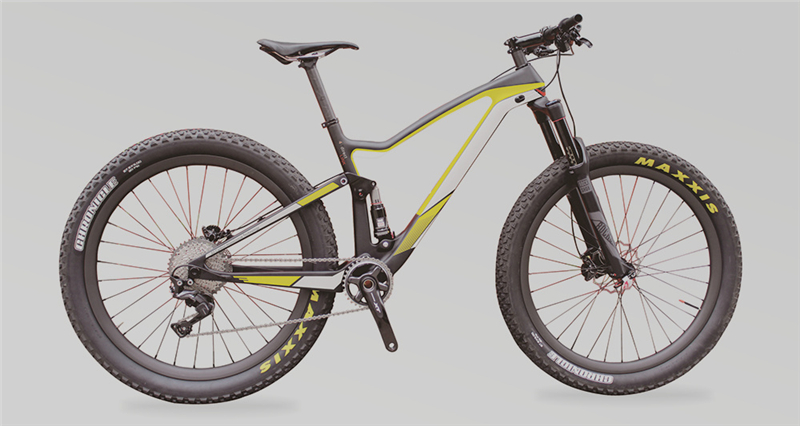

  • Max Tire size: 29er*2.35" / 27.5 plus*2.8"
  • Advise Laden weight: 110KG
  • Warranty: 2 years
