Carbon MTB Frame

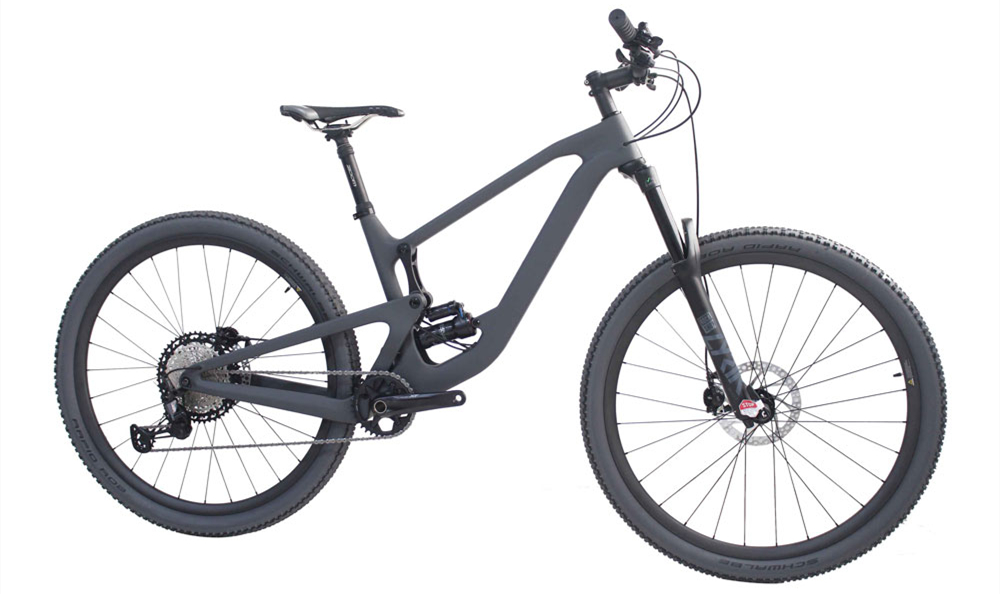

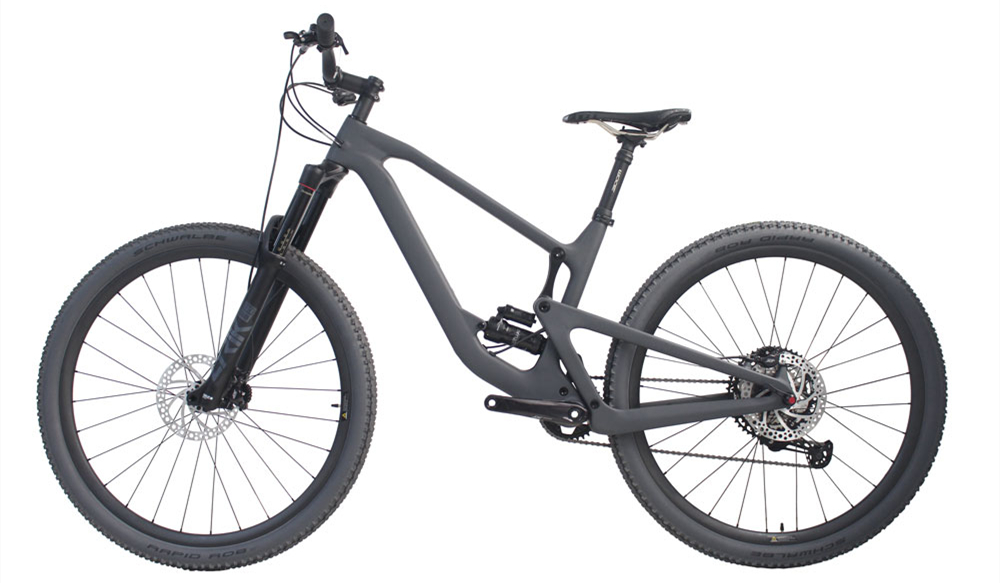

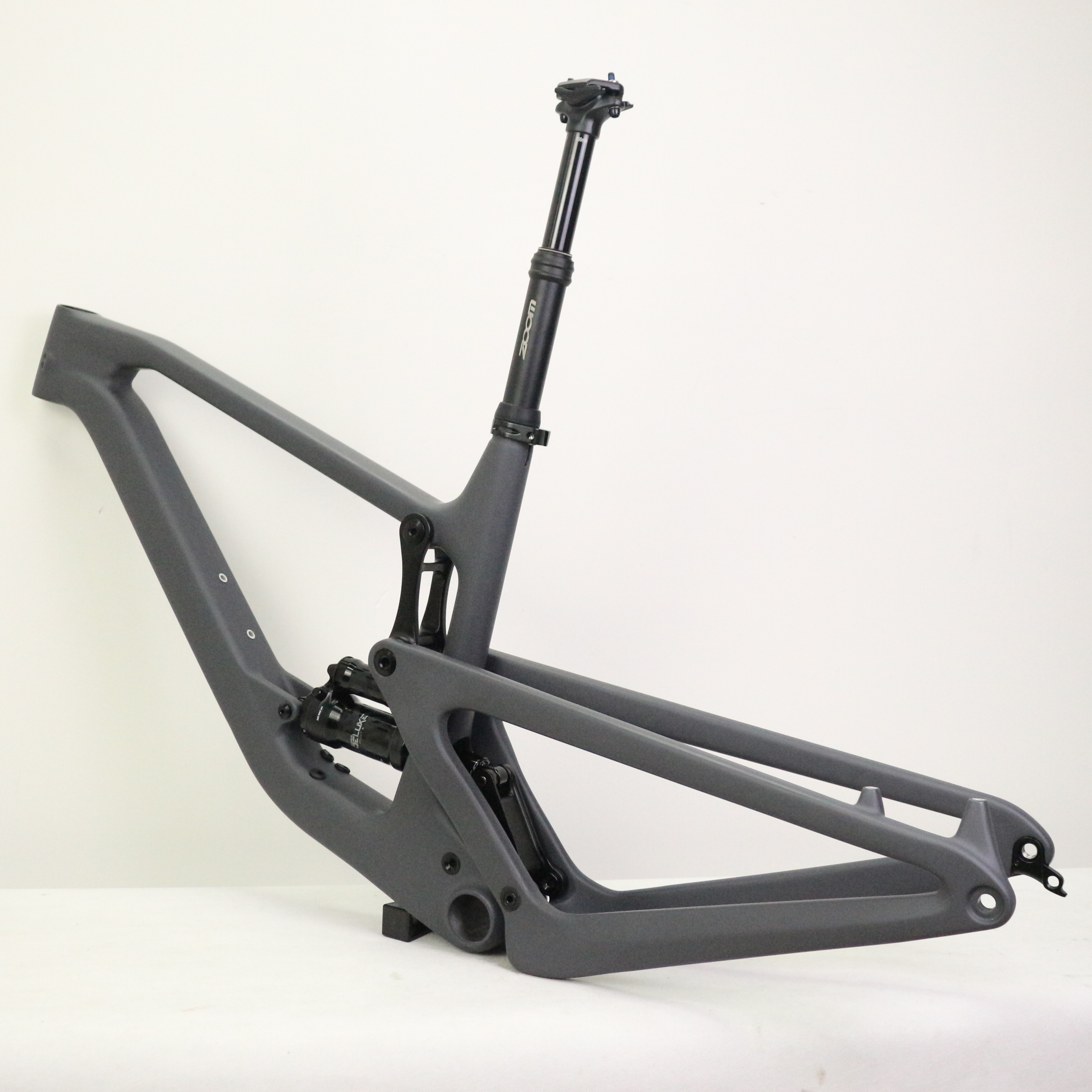

  • FS831 Dual-Suspension AM 140mm travel 29ER mtb frame
  • FS831 Dual-Suspension AM 140mm travel 29ER mtb frame
  • FS831 Dual-Suspension AM 140mm travel 29ER mtb frame
FS831 Dual-Suspension AM 140mm travel 29ER mtb frameFS831 Dual-Suspension AM 140mm travel 29ER mtb frameFS831 Dual-Suspension AM 140mm travel 29ER mtb frame

FS831 Dual-Suspension AM 140mm travel 29ER mtb frame

  • Size: S M L XL
  • Bottom Bracket: BB92
  • Rear Shock: 210*55
  • Rear Space: 148*12mm
  • Product description: 1. Dual suspension 2. Boost 29er 148*12mm 3. Rear shock: 210*55mm
  • INQUIRY

Pre-sale: Frame Model FS831

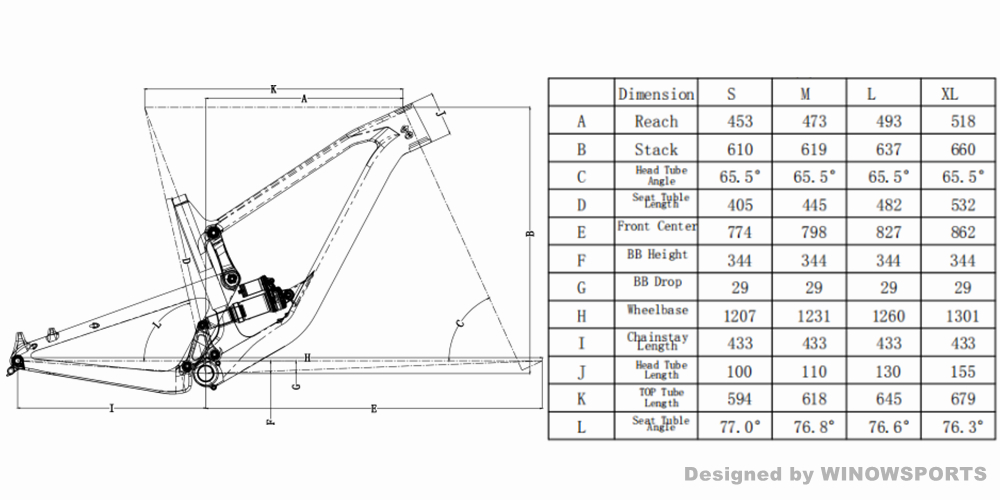

Size M will be available first (check below Geometry for your reference)

Please email me if you would like to take a pre-sale unit by info@winowsports.com


1. Shipment to below europ countries we use XDB/DPD/WXY/GLS DUTY FREE shipment and each frame USD155(with tax included)

2. Sample: USD699/set (Frame+Thru Axle 148*12mm+Headset+Clamp included)



  • Material:Toray T800 Carbon Fiber
  • Size: S M L XL
  • Weave: UD
  • Headtube: 1-1/8" to 1-1/2"
  • Bottom Bracket: BB92

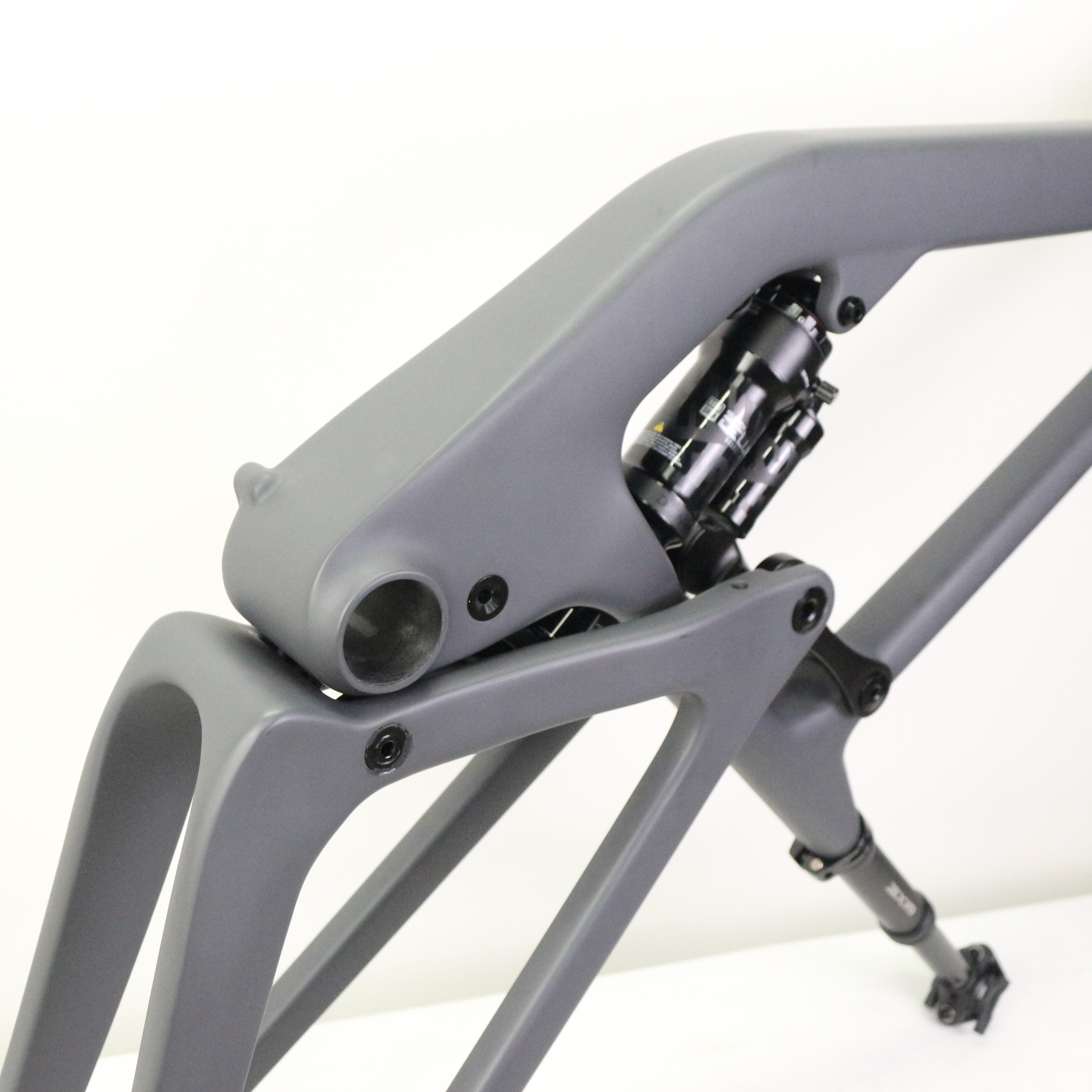

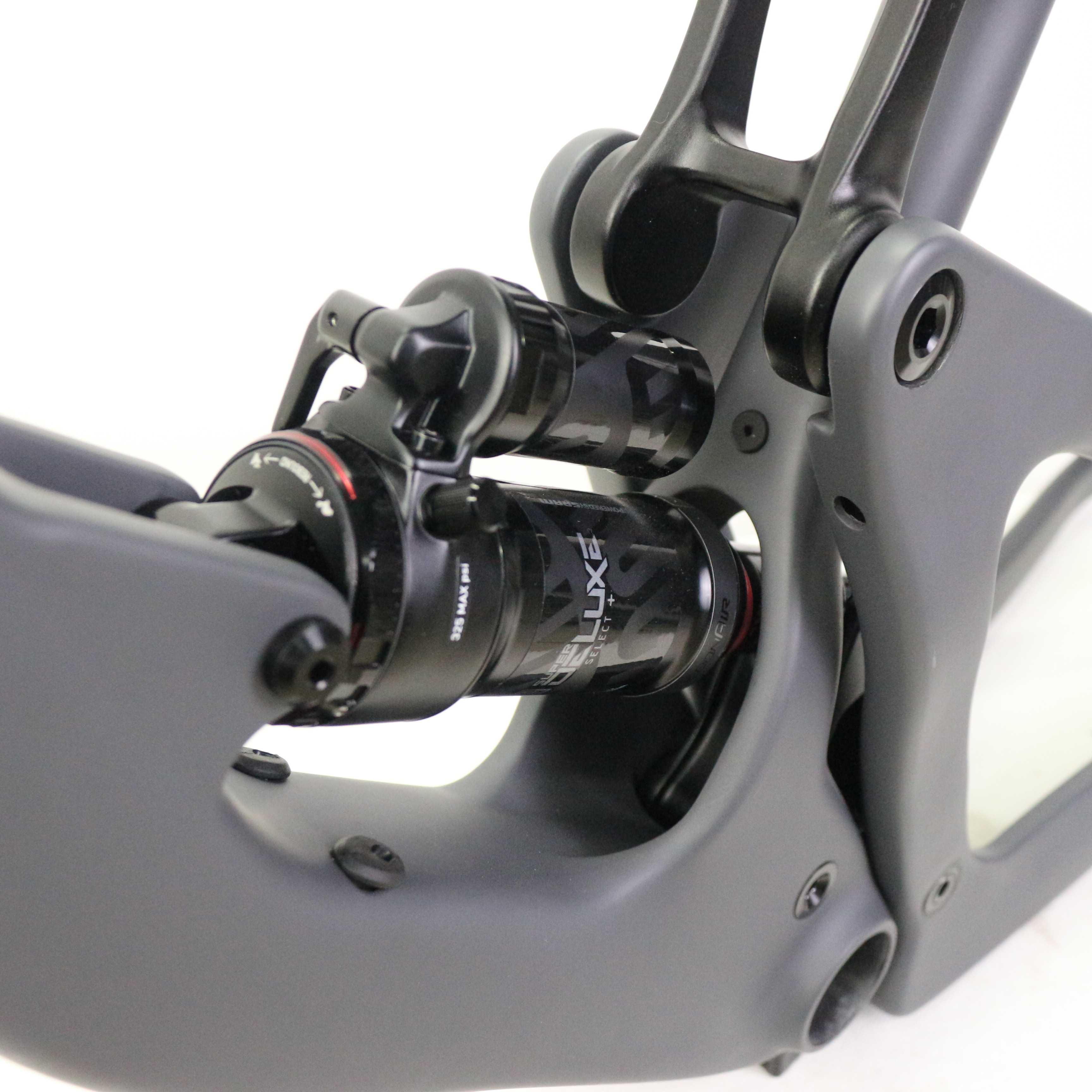

  • Rear Shock: 210*55mm
  • Rear wheels travel: 140mm
  • Advise Fork Travel: 150mm
  • Brake Type: Post Mount 200mm
  • Rear space : 12*148mm Boost
  • Seat tube: 31.6mm
  • Tire: 29er*2.4"
  • Advise Laden weight: 110KG
  • Crank Touch:  Shimano 30-32-34T / SRAM 30-32-34T
